Increasing efficiency at the burner system

Combustion air fan

An optimum fuel/air mixture is required to achieve full combustion. However, industrial boiler systems are often run in partial load operation. In this mode of operation both the fuel and air supply are reduced.

The combustion air fan without speed control also runs in partial load ranges at nominal speed because in this case the air quantity supplied for combustion is restricted purely by closing air dampers. In this case the fan consumes a large amount of electrical power which disappears with no benefit due to the restriction. If the quantity of air is primarily modified through modulation of the fan speed, the power consumption in partial load ranges is reduced (roughly 40% can be potentially saved).

The noise generation behaviour is also along the same lines as the reduction in power consumption. All systems that are often operated in partial load ranges for extended periods should be equipped with speed-controlled fans.

Around 40% of the electrical energy can be saved by using a burner load profile with medium capacity utilisation. This normally achieves annual savings amounting to a four-figure Euro sum which means that a speed-controlled burner normally pays for itself within a year.

Example:



Boiler output

10 t/h

Burner fan

22 kW

Electricity savings

around 48,000 kWh/a (42 %)

Cost savings

around 6,720 €/a (with electricity price 0.14 €/kWh)

Energy savings with speed-controlled burner fan

Energy savings with speed-controlled burner fan

Excess air

In combustion technology, the ideal situation is stoichiometric combustion. This happens if all fuel molecules react completely with the oxygen without leaving any unburned fuel or oxygen behind.

If insufficient atmospheric oxygen is supplied during the combustion process, an incomplete combustion reaction may occur. A negative consequence of this would be the formation of carbon monoxide, a highly poisonous gas. If the quantity of air is increased too rapidly, all fuel molecules have already reacted with the oxygen molecules. The remaining oxygen molecules form a surplus which is not required. As the cold ambient air is normally used as combustion air, this cold air is ultimately heated with an unnecessarily high volume of excess air, which is released into the atmosphere together with the flue gases.

An optimum combustion air setting is therefore important for efficient operation and safe, clean combustion. This is attributable to air pressure, air temperature and air humidity fluctuations on the one hand and fluctuations in the fuel quality, which will increase. On the other hand, a certain amount of excess air compared to the theoretical ideal must be specified to provide a margin of safety. Ultimately, carbon monoxide, a poisonous and explosive gas, must not be allowed to form under any circumstances. These settings are normally carried out and checked when commissioning the boiler system and when carrying out quarterly or six-monthly maintenance.

O2 and CO control at steam boiler (simplified representation)

O2 and CO control at steam boiler (simplified representation)

Control

Otest probe

CO test probe

Steam

Flue gas

In order also to be able to operate the systems closer to the optimum operating point under varying conditions, continuous measurement and control units are required. An O2 control essentially consists of an oxygen measurement probe which is installed in the flue gas flow and a control unit. This continuously records the residual oxygen content in the flue gas and forwards the signal to the burner control which adjusts the air quantity as required.

Combined electrodes (O2 and CO) have been available for a number of years. In combination with CO measurement, the excess air λ can be set more precisely at the CO limit. When using an O2 and CO control, the setting normally used for excess air at full load of 3 – 4% by vol. of oxygen in the flue gas can be reduced to 0.5 – 1.0% by vol. of oxygen. This equates to a flue gas loss reduction of roughly 1 percentage point at the same flue gas temperature. CO control cannot be used when using oil as the fuel.

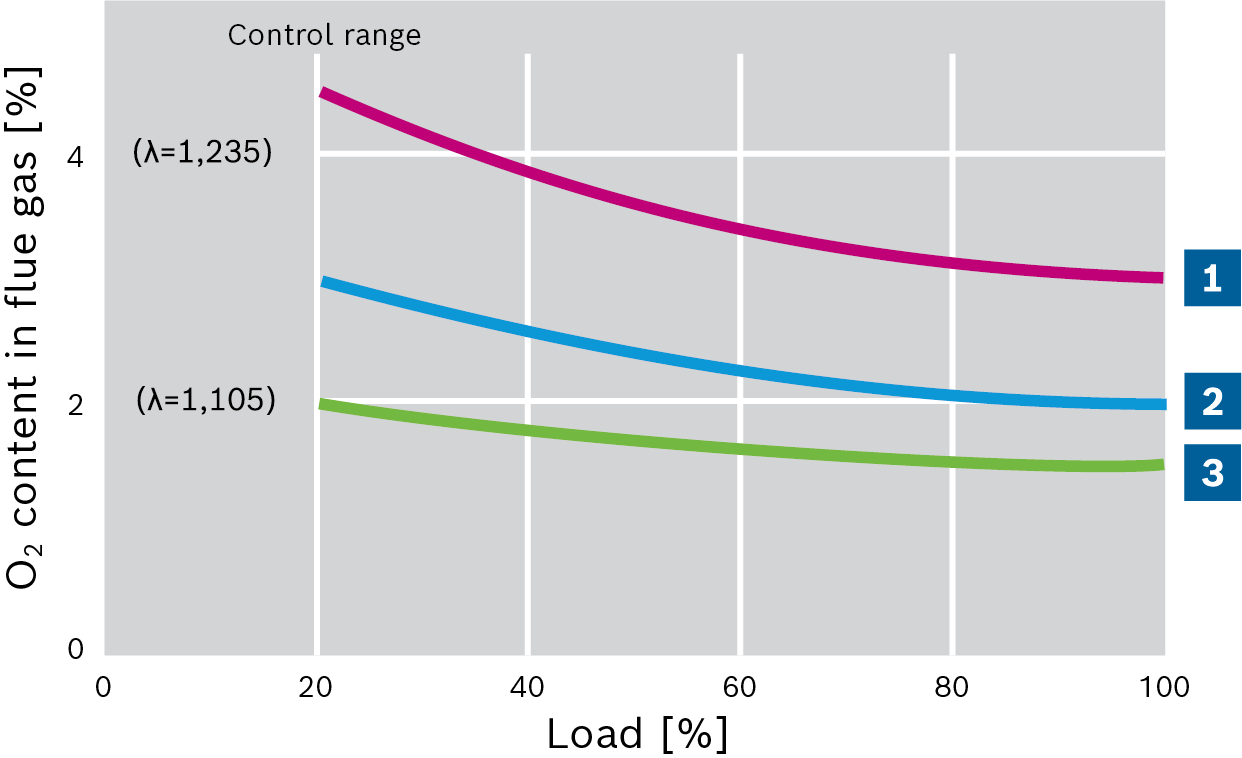

Residual oxygen content and excess air using O2 and CO control via the burner load

Residual oxygen content and excess air using O2 and CO control via the burner load

Without control

With O2 control

With CO control



Output adjustment

In existing systems, and also occasionally new systems, the available boiler output is far greater than the actual steam output required.

The causes of this are frequently:

  • Reduction of demand in existing systems, e.g. because consumers no longer exist or the existing potentials for heat recovery have subsequently been tapped
  • Oversizing during the planning of new systems, e.g. due to incorrect diversity factors of consumers, taking power reserves that are far too high into account or expansion of the consumers that has already been considered but not yet implemented

As a consequence, the rate of steam extraction is too low in relation to the boiler output, which leads to a high number of burner switch-on and switch-off operations. This causes pre-ventilation losses and also stresses due to temperature fluctuations that can be extreme, especially with long pre-ventilation times.

Info on Pre-ventilation

The following measures can be taken to compensate for an overly high boiler output:

  • Installation of low load controls that postpone immediate up-regulation following the burner start
  • Use of power controllers that allow the burner to adhere to the low-load stage for an unlimited period
  • Use of burners with high control range
  • Matching of burner output to the actual requirements. This requires modification of the burner or addition of a burner with a smaller output range
Pressure curve before and after adjustment of the burner output

Pressure curve before and after adjustment of the burner output

Pressure curve before adjustment
of the burner output

Pressure curve after adjustment
of the burner output



Pre-ventilation

Before every burner start it must be ensured that there are no ignitable mixtures in the flue gas paths. This is achieved in practise by pre-ventilation. Before the burner ignites the flame, the combustion air fan starts and pushes ambient air through the hot flue gas paths which are still at boiling temperature. This heats the cold air and draws heat from the boiler. A sufficient air change-over is prescribed which can lead to a significant energy loss, especially with frequent burner starts.

As a rule, the pre-ventilation time must be sized so as to achieve a 2 – 3-fold air change, with reference to the entire flue gas system. The design must be agreed with the technical supervisory authority. Frequent burner starts are not only uneconomical, they also have a detrimental effect on the service life. An ideal situation to aim for would be 1 – 2 burner switch-on cycles per hour. If there are more than 4 burner switch-on cycles per hour, measures should be taken to reduce the number of burner switch-on cycles, e.g. by adjusting the output of the burner.

Info on Output adjustment


Berechnung

Equation for approximate calculation of pre-ventilation losses

Q l,pre-ventilation = 1.26 ∙ Q· bu ∙ ΔT ∙ t ∙ 10-7



Ql,pre-ventilation

Pre-ventilation loss of system [kWh]

Q· bu

Combustion capacity of system [kW]

ΔT

Temperature differential between the medium in the boiler and ambient air drawn in [K]

t

Sum of the actuator opening and closing times and pre-ventilation time


Berechnung

Equation for approximate calculation of combustion output of the system



Q· bu

Combustion capacity of system [kW]

S

Steam output [kg/h]

ƞ

Efficiency of boiler incl. economiser [%]


Berechnung

Equation for calculation of temperature differential between the medium in the boiler and ambient air drawn in

ΔT = Tboi − TA = Ts (pavg=13 bar) − TL



ΔT

Temperature differential between the medium in the boiler and ambient air drawn in [K]

Tboi

Temperatures of the medium in the boiler [K]

TA

Temperatures of ambient air drawn in [K]

Ts

Boiling point of the medium in the boiler at a specific pressure pavg [K]


Berechnung

Equation for calculating the sum of the actuator opening and closing times and pre-ventilation time

t = t1 + t2 + tV



t

Sum of the actuator opening and closing times and pre-ventilation time [s]

t1

Opening time of the actuator (roughly 30 – 60s) [s]

t2

Closing time of the actuator (roughly 30 – 60s) [s]

tV

Pre-ventilation time (≤ 120s) [s]


Berechnung
Example calculation for determining the sum of the actuator opening and closing times and pre-ventilation time
t = [s] + [s] + [s] = 130 [s]


Example calculation for determining the temperature differential between the medium in the boiler and ambient air drawn in
ΔT = [°C] – [°C] = 170 [K]


Example calculation for determining the approximate combustion output of the system
Q·bu [ kg h ] ⋅ 0.65 % ≈ 6,700 [kW]


Example calculation for determining the approximate pre-ventilation losses
QI,pre-ventilation = 1.26 ⋅ 6,700 [kW] ⋅ 170 [K] ⋅ 130 [s] ⋅ 10-7 = 18.7 [kWh]


With an average of 4 burner starts per hour and average boiler load of 20% the heat loss is 6% of the boiler output.

When extrapolated over an elapsed time of 4,000h/a, this results in a total heat loss of roughly 300MWh/a; in financial terms a loss of €13,500 per year.



Example calculation for determining the approximate annual pre-ventilation loss [MWh]
18.7 [kWh] ⋅ [ h a ] ⋅ [ 1 h ] = 299 [ MWh a ]


Example calculation for determining the approximate annual pre-ventilation loss [€]
299 [ MWh a ] ⋅ [ MWh ] = 13,455 [ a ]
