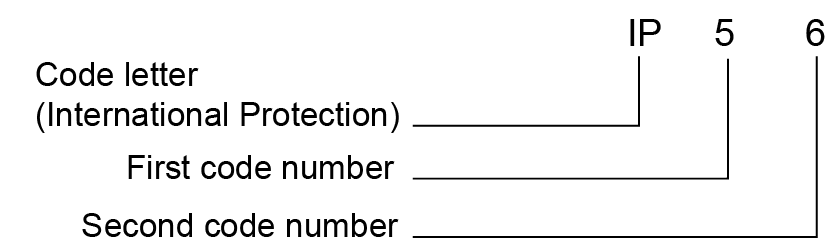

IP ratings of casings
According to EN 60529 (VDE 0470-1):2014-09
First code number
|
Against penetration of solid foreign bodies: |
Against access to dangerous parts with: |
|
|
0 |
(not protected) |
(not protected) |
|
1 |
≥ 50 mm diameter |
Back of hand |
|
2 |
≥ 12.5 mm diameter |
Finger |
|
3 |
≥ 2.5 mm diameter |
Tool |
|
4 |
≥ 1.0 mm diameter |
Wire |
|
5 |
Dust-proof |
Wire |
|
6 |
Dust-tight |
Wire |
IP ratings of casings – first code number
Second code number
|
0 |
(not protected) |
|
1 |
Vertical dripping |
|
2 |
Dripping (15° inclination) |
|
3 |
Spray water |
|
4 |
Splash water |
|
5 |
Water jet |
|
6 |
Strong water jet |
|
7 |
Temporary immersion |
|
8 |
Continuous immersion |
|
9 |
High-pressure and high water jet temperature |
